Plotbot Pro — 130W CO2 laser cutting machine with a 4 × 3 ft bed

A 130 W sealed-tube CO2 laser cutter with a 4 × 3 ft (1300 × 920 mm) working area. It cuts acrylic up to 13 mm and MDF up to 8 mm, engraves at up to 500 mm/s and connects over Wi-Fi and Bluetooth. Designed, built and supported by Retech Lasers in Chennai.

130 W sealed CO2 tube4 × 3 ft bed (1300 × 920 mm)Cuts acrylic 13 mm, MDF 8 mm

Starts from₹3,20,000Final price depends on the configuration you choose. Ask us for a quote with GST and delivery.

Get a quote →▶ Watch the video

Your browser cannot play this video.

Who it’s for

Who buys the Plotbot Pro

Gift studios moving up from a desktop machine

The 4 × 3 ft bed runs many pieces in one job and 130 W cuts thicker acrylic, MDF and wood. Custom gifts and décor pieces in larger batches.

Sign, interior décor and furniture workshops

Acrylic up to 13 mm and MDF up to 8 mm cover sign boards, décor panels and furniture parts. Engraving at up to 500 mm/s adds text and logos on the same machine.

Architecture, product design and college labs

Import DXF or SVG drawings from CAD and cut scale models, prototypes and parts in cardboard, MDF and acrylic.

Applications

What you can make with the Plotbot Pro

Acrylic signage and displays

Cut acrylic up to 13 mm for sign boards and décor pieces, and engrave logos and text in the same job.

Architectural models and prototypes

Cardboard, MDF and acrylic parts cut from DXF or SVG files for scale models and product prototypes.

Furniture and interior décor

MDF up to 8 mm and wood for furniture components, wall décor and interior panels.

Custom gifts and fine craftwork

Leather, wood and acrylic for personalised gifts and detailed artwork, engraved at up to 500 mm/s.

Sample applications for the Plotbot Pro

Illustrative images of the kind of work the Plotbot Pro suits, not photos of customer orders. Real machines and customer results are in the videos and customer stories below.

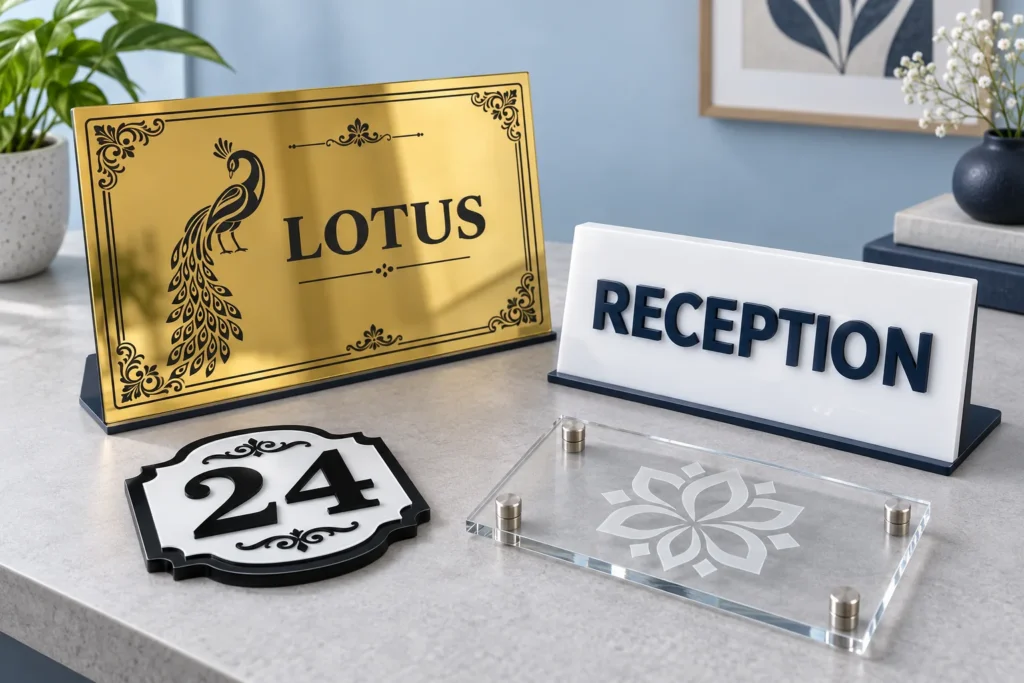

Sample acrylic signage: a golden acrylic desk sign reading LOTUS with a peacock motif, a white RECEPTION sign with raised navy letters, a black and white number 24 house plate, and a clear acrylic panel with a frosted engraved flower on metal stand-offs — **Sample: acrylic signs and nameplates**A LOTUS sign with a peacock motif on golden acrylic (acrylic, not brass), a raised-letter reception sign, a house-number plate and a clear acrylic panel with a frosted engraving on stand-offs.

Sample plywood models: an assembled dinosaur skeleton, a moose-head wall trophy and a miniature garden swing, with flat laser-cut puzzle parts laid out in front — **Sample: models and puzzles**Interlocking plywood kits: a dinosaur skeleton, a moose-head trophy and a miniature swing, shown with their flat cut parts.

Sample engravings on black granite: a large tiger portrait on a stand, a small tile with a leaf sprig, and a landscape of mountains, pine trees and a lake — **Sample: granite engraving**A tiger portrait, a leaf tile and a mountain lake scene engraved on black granite. The laser engraves the polished surface; it does not cut the stone.

Sample image engravings: a tiger face engraved on a plywood panel, a temple gopuram engraved on a clear acrylic block on a black base, and a botanical drawing engraved on wood in a dark wooden frame — **Sample: photo and image engraving**A tiger portrait engraved on plywood, a temple gopuram engraved on clear acrylic and a botanical sketch engraved on wood in a frame.

Sample lit decor: a 3D-effect vase design engraved on clear acrylic and a ginkgo design on blue-lit acrylic, both on black LED bases, beside a warm-lit layered wooden shadow-box lamp — **Sample: illuminated acrylic and layered lamps**Engraved acrylic panels lit from LED bases, and a layered wooden shadow-box lamp built from stacked cut layers.

Sample large granite panels in a showroom: a wide black granite slab engraved with a Radha and Krishna portrait, and a tall panel engraved with a portrait of a man holding a child — **Sample: large granite panels**Large black granite panels surface-engraved with a Radha–Krishna portrait and a portrait of a man holding a child. The stone is engraved, not cut.

Specifications

Plotbot Pro technical specifications

Figures from Retech’s published specification sheet. Ask sales for a test cut on your own material.

Designed and built in Chennai

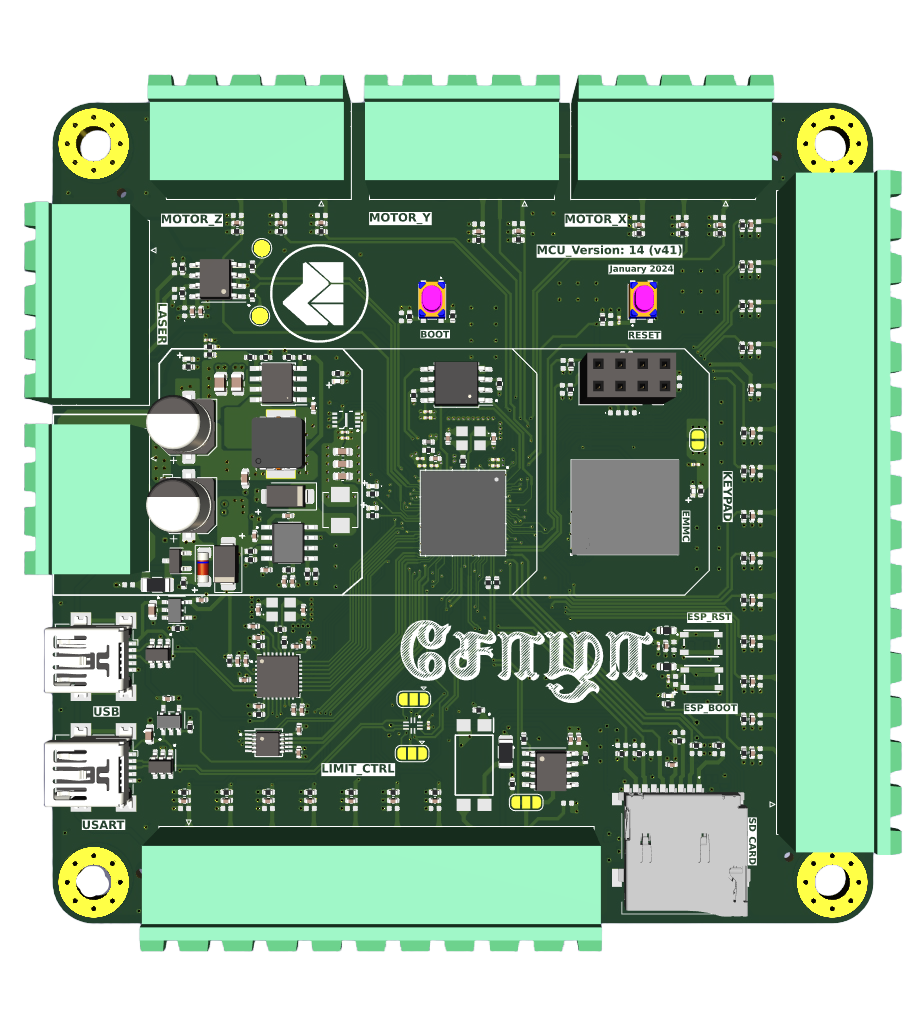

The Plotbot controller board, firmware and user-friendly software are developed in-house to work together.

Wi-Fi and Bluetooth, standard

Wi-Fi connectivity and Bluetooth control access are built in, with a touch display on the control tower.

Support from the team that built it

Sales +91 74488 00114, support +91 74488 00113, service +91 74488 00119, and setup videos.

800+ machines across India

Delivered over 9+ years, with customer feedback videos on the Retech Lasers YouTube channel.

Starting price	₹3,20,000 (ask for a quote with GST and delivery)
Model	Plotbot Pro
Laser type	CO2, sealed laser tube, 10.6 µm wavelength
Laser power	130 W
Working area	4 × 3 ft (1300 × 920 mm)
Engraving speed	0–500 mm/s
Cutting speed	0–30 mm/s
Max cut thickness	Acrylic up to 13 mm; MDF up to 8 mm
Power adjustment	0–100 %, stepless
Cooling	Water cooling
Connectivity	Wi-Fi; Bluetooth control access
Supported formats	BMP, JPEG, SVG, TIF, PNG, DXF
Software	Plotbot software (Windows)
Working voltage	AC 220 V / 110 V ±10 %, 50/60 Hz
Operating environment	0–40 °C; 5–95 % humidity

Plan your space

Plotbot Pro overall dimensions

The machine footprint and height, shown in millimetres.

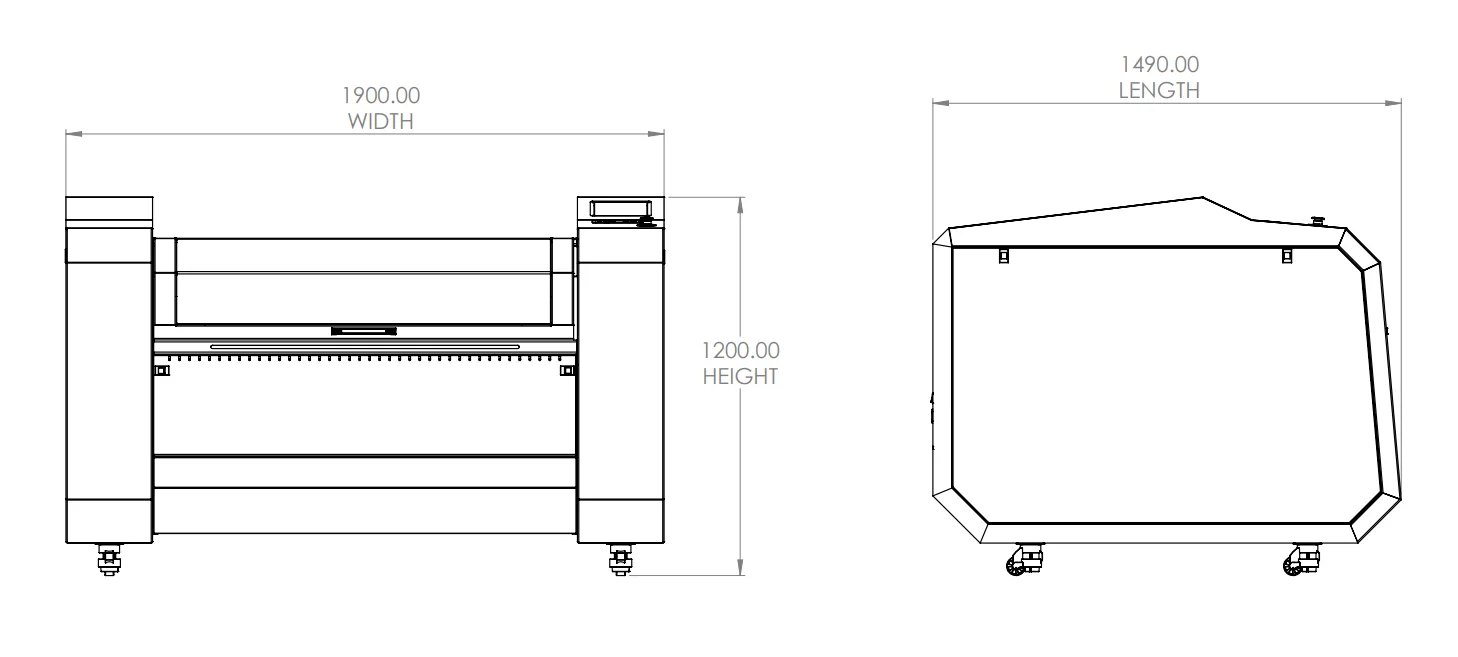

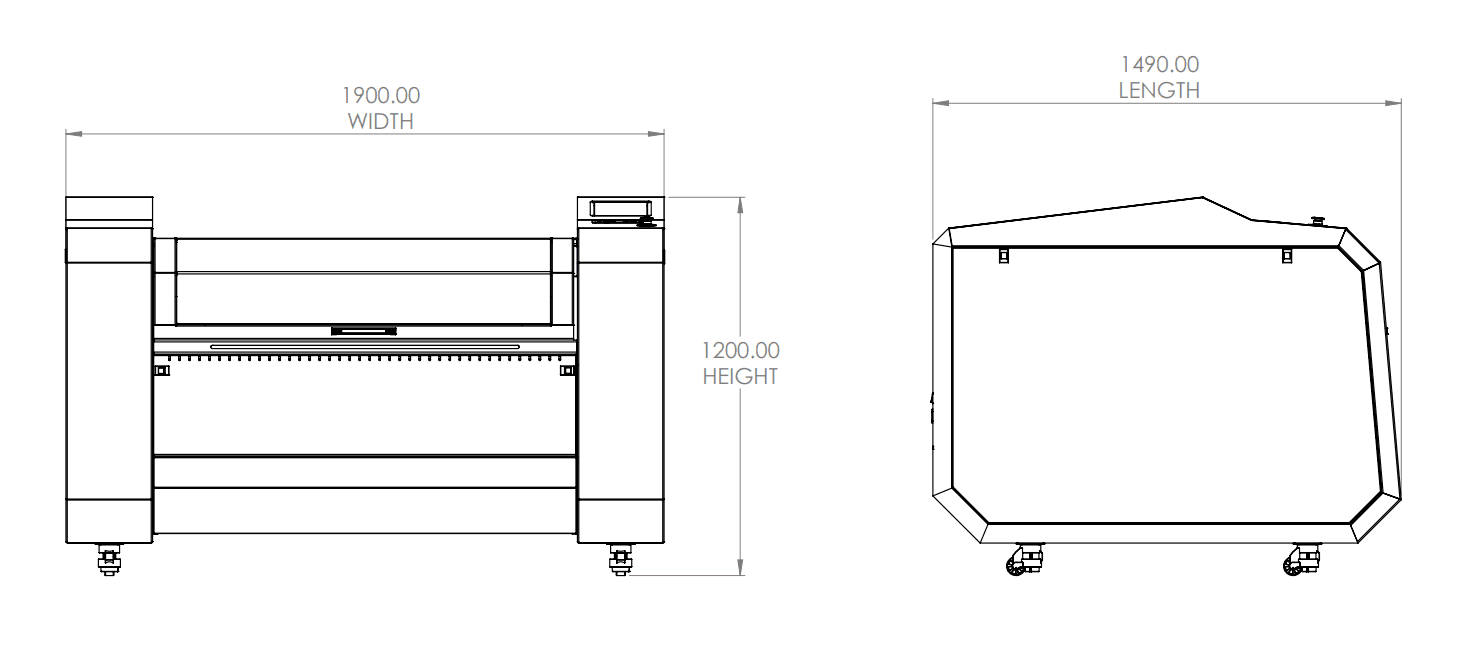

Plotbot Pro front and side dimension drawing: width 1900.00 mm, depth 1490.00 mm and height 1200.00 mm

Width1900.00 mmDepth1490.00 mmHeight1200.00 mm

Published model drawing. Confirm installation clearances and the dimensions of your configuration with Retech before preparing the site.

Materials

Materials it cuts and engraves

Up to 13 mmAcrylicUp to 8 mmMDFWood and plywoodLeather and rexineCardboard, paper and cardFabric and feltFoam sheetRubber (stamps)Stickers and stencilsSee Plotbot FiberMetals

Software

Plotbot software, made for the machine

Plotbot runs on Windows and imports PNG, JPG, SVG, DXF, BMP and TIF files. Material presets set engraving speed, laser power, scan lines per inch and cutting speed for you, and a real-time preview shows the job before you cut.

About Plotbot software →

See it working

Plotbot Pro videos and customer stories

Petra Stickers — Plotbot Pro customer review

Two years with a Plotbot — customer review

Plotbot Pro maintenance guide

FAQ

Plotbot Pro questions, answered

Still have a question? Ask us here and an engineer will get back to you.

How thick can the Plotbot Pro cut?

With its 130 W CO2 tube, the Plotbot Pro cuts acrylic up to 13 mm and MDF up to 8 mm. It does not cut metal; for that, see the Plotbot Fiber.

What is the working area of the Plotbot Pro?

4 × 3 ft, or 1300 × 920 mm — four times the bed area of the desktop Plotbot Plus. For full 8 × 4 ft sheets, the Plotbot Max carries the same 130 W tube on a 2440 × 1220 mm bed.

Is the Plotbot Pro suitable for beginners?

Yes. The Plotbot software has material presets and a real-time preview, so a first job is mostly import, pick a material and cut. Setup videos and the support line (+91 74488 00113) help when you get stuck.

Which file formats and software does it use?

BMP, JPEG, SVG, TIF, PNG and DXF, prepared in Plotbot, Retech’s own Windows software. Version 5.11 can be downloaded from the software page.

Can the Plotbot Pro cut metal?

No. It is a CO2 laser for non-metal materials. For mild steel, stainless steel, aluminium and copper, Retech makes the Plotbot Fiber.

What support and warranty does Retech provide?

Separate lines for sales (+91 74488 00114), support (+91 74488 00113) and service (+91 74488 00119), plus software help at plotbot.retech@gmail.com. Ask sales for the current warranty terms with your quote.
