Retech LasersHome › Machines › Plotbot Plus
Plotbot Series · Desktop model

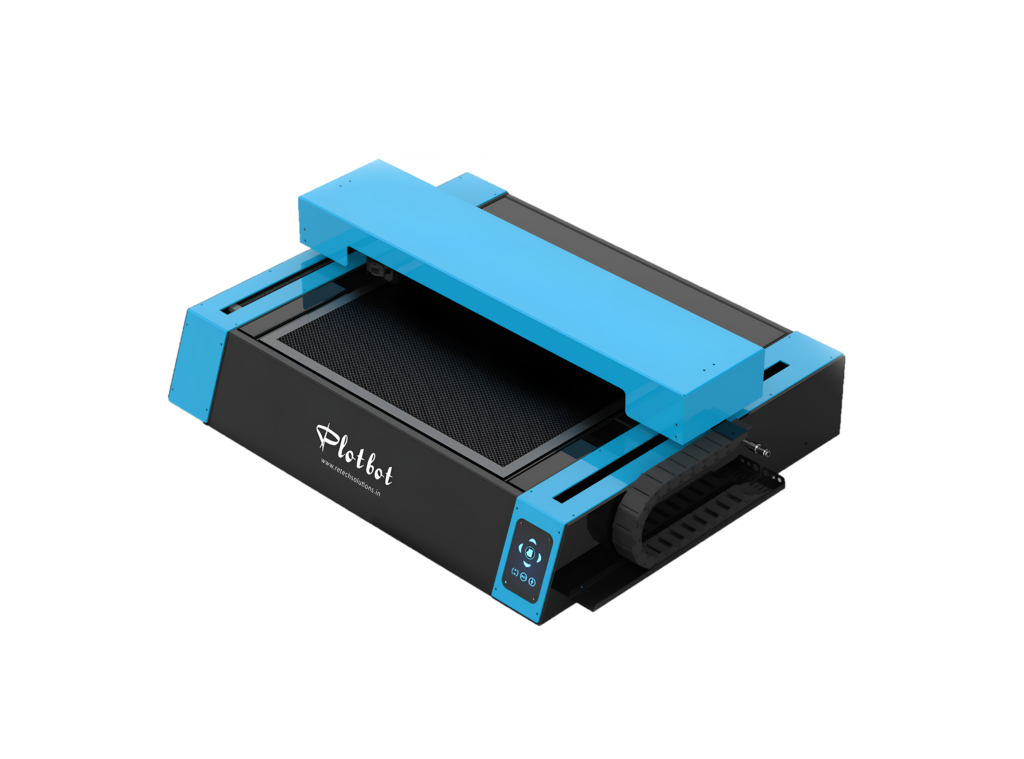

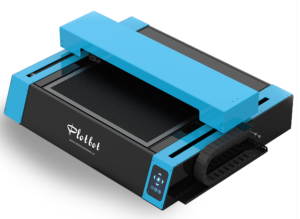

Plotbot Plus: 40 W desktop CO2 laser cutting machine
A 40 W CO2 laser cutter and engraver with a 2 × 1.5 ft working area. It cuts acrylic up to 6 mm and MDF up to 5 mm, and engraves wood, leather, paper, fabric and more at up to 300 mm/s. Designed and built by Retech Lasers in Chennai, and small enough for a workbench in a studio, shop or college lab.
Starts from₹1,60,000Final price depends on the configuration you choose. Ask us for a quote with GST and delivery.
Who it’s for
Who buys the Plotbot Plus
Makers and gift studios
Engrave names, messages and dates on wood, leather and acrylic. Make keepsakes for birthdays and weddings, jewellery pieces, greeting cards and photo engravings for wall art.
Small sign shops and startups
Cut acrylic sign boards up to 6 mm, plus stickers and stencils. Start in a limited space, then move up to the Plotbot Pro (4 × 3 ft, 130 W) when orders grow.
Colleges and engineering labs
Cut prototype parts, templates and models from MDF, acrylic and card, with clean, accurate edges. A desktop machine that fits a lab bench, with a user-friendly interface for first-time users.
Applications
What you can make with the Plotbot Plus
01
Personalised gifts and keepsakes
Engrave names, messages or dates on wood, leather or acrylic. Keychains, photo engravings on wood and keepsakes for birthdays, weddings and celebrations.
02
Acrylic sign boards
Cut acrylic up to 6 mm for sign boards and small signage jobs. Engrave lettering and logos, then cut the outline in the same job.
03
Greeting cards, stickers and stencils
Detailed engraving and cutting on paper and card, sticker sheets and stencils, for card makers and craft and DIY work.
04
Prototype and engineering parts
Clean, accurate cuts in MDF, acrylic and card for prototypes, templates, models and small laser-cut components.
Sample applications for the Plotbot Plus
Illustrative images of the kind of work the Plotbot Plus suits, not photos of customer orders. Real machines and customer results are in the videos and customer stories below.
Specifications
Plotbot Plus technical specifications
Figures from Retech’s published specification sheet. Ask sales for a test cut on your own material.
Designed and built in-house
The Plotbot control board, firmware and user-friendly software are developed by our engineering team in Chennai.
Made in Chennai, India
Manufactured by Retech Lasers Private Limited in Chennai. 800+ machines delivered across India in 9+ years.
Plotbot software, made for the machine
Import BMP, JPEG, PNG, TIF, SVG or DXF, pick a material preset, check the real-time preview and cut.
Support and service after the sale
A setup video covers unboxing to calibration. Support +91 74488 00113, service +91 74488 00119, software help at plotbot.retech@gmail.com.
| Starting price | ₹1,60,000 (ask for a quote with GST and delivery) |
|---|---|
| Model | Plotbot Plus |
| Laser tube | 40 W |

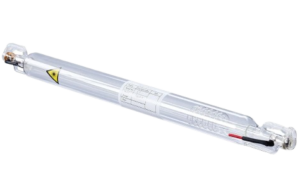

| Laser type | CO2, sealed glass tube, 10.6 µm wavelength |
| Working area | 2 × 1.5 ft |
| Cooling | Water cooling |
| Power adjustment | 0–100 % stepless; adjustable in software |
| Engraving speed | 0–300 mm/s |
| Cutting speed | 0–15 mm/s |
| Working voltage | AC 220 V / 110 V ±10 %, 50/60 Hz |
| Operating environment | 0–40 °C; 5–95 % humidity, non-condensing |
| Supported formats | BMP, JPEG, SVG, TIF, PNG, DXF |
| Software | Plotbot software (Windows) |
Plan your space

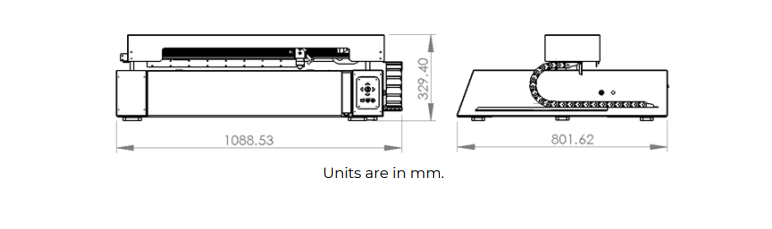

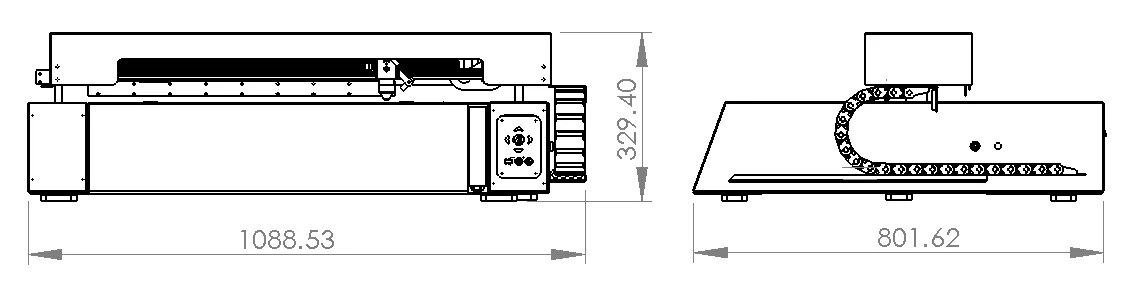

Plotbot Plus overall dimensions
The machine footprint and height, shown in millimetres.
Published model drawing. Confirm installation clearances and the dimensions of your configuration with Retech before preparing the site.
Materials
Materials it cuts and engraves
Software
Plotbot software, made for the machine
Plotbot software for Windows is developed at Retech’s R&D centre in Chennai. Import PNG, JPG, BMP, TIF, SVG or DXF files, or add text and shapes. Set engraving speed, laser power, scan lines per inch and cutting speed yourself, or pick a preset for wood, acrylic, leather and other materials. Check the real-time preview, then send the job.
About Plotbot software →See it working
Plotbot Plus videos and customer stories
Devi Gifts, Sirkali — customised gifts with Plotbot Plus
Athen Printers, Tirunelveli — adding gifts to a print shop
Plotbot Plus maintenance guide
FAQ
Plotbot Plus questions, answered
Still have a question? Ask us here and an engineer will get back to you.
What can the Plotbot Plus cut, and how thick?
The Plotbot Plus cuts acrylic up to 6 mm, MDF up to 5 mm and leather up to 3 mm. It also cuts and engraves wood, paper and card, stickers, stencils, fabric such as cotton and felt, foam sheet and rexine. Cutting speed is 0–15 mm/s and engraving speed is 0–300 mm/s.
Can the Plotbot Plus cut metal?
No. The Plotbot Plus uses a 40 W CO2 laser, which cuts and engraves non-metal materials. For mild steel, stainless steel, aluminium or copper you need a fiber laser: the Plotbot Fiber, with 1.5, 3 or 6 kW sources and a 10 × 5 ft bed.
Which software and file formats does it use?
Plotbot software, developed by Retech Lasers in Chennai for Windows PCs. It imports BMP, JPEG, PNG, TIF, SVG and DXF files, and has material presets and a real-time preview. Version 5.11 is the latest download.
Where is the Plotbot Plus made?
The Plotbot Plus is designed and manufactured by Retech Lasers Private Limited in Chennai, Tamil Nadu. The Plotbot control board, firmware and software are developed in-house. Retech has delivered 800+ machines across India.
What support comes with the Plotbot Plus?
A step-by-step setup video takes you from unboxing to calibration. Support: +91 74488 00113. Service: +91 74488 00119. Software help: plotbot.retech@gmail.com. Ask sales for the current warranty terms with your quote.
Can I see the Plotbot Plus working before I buy?
Yes. Book a demonstration with our sales team on +91 74488 00114 or at info@retechlasers.com. You can also watch it cut and engrave on the Retech Lasers YouTube channel, including customer feedback videos.
Compare the range
Other Plotbot machines
Get a quote for the Plotbot Plus
Tell us what you want to cut and how many pieces a day. We will confirm the right fit and send a quote.
